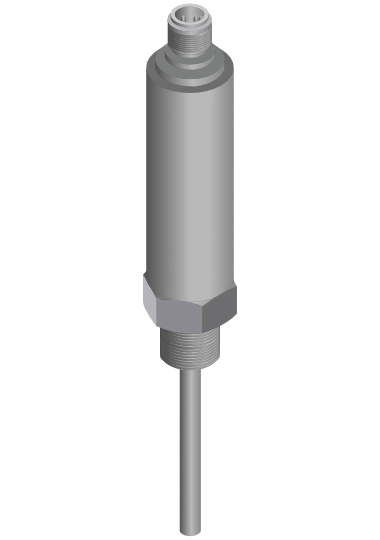

   RTD Temperature Transmitter with analogue output ASTR model

The ASTR temperature transmitter can be supplied with a measuring range set by our technicians, from -200 to +600 ° C according to your needs, with different diameters and lengths of the measuring sheath as well as the different types of fittings (fixed or sliding) to interface with your process.

Through the optional kit consisting of the GS_Soft software and the GS_CON interface module, which can be used with the circular connector and with the square DIN EN 175 connector, it is possible to set the measurement range associated with the analog output, according to your process needs in any moment through the self-feeding of the kit directly on the process without the need to disassemble it.

Thanks to the ISO 9001: 2015 quality system and thanks to the CE certification obtained, we can supply products through a dedicated production line with the highest quality requirements, guaranteeing robustness, resistance to interference and reliability in measurements over the years.

The sensitive part of the transmitter is made up of Pt100 or Pt1000 resistance elements for greater flexibility and adaptation to the process, ensuring quality and accuracy in the measurement.

The ASTR temperature transmitter finds its natural use in measuring the temperature in liquid and gaseous fluids for industrial process applications.

Contact us

ASTR model

Nominal resistance: 100 Ohm @ 0 °C; Pt1000 Ohm @ 0 °C
Tolerance class according to EN60751
Simple or Oxide mineral (MgO) insulation
Sheath material in SS316 (other upon request)
Sheath diameter 3 or 6 mm (other upon request)
Electrical connection:
- Squared DIN EN 175 301-803-A (IP65), 30x30 mm with angular output connector
- Circular M12 (IP65) connector

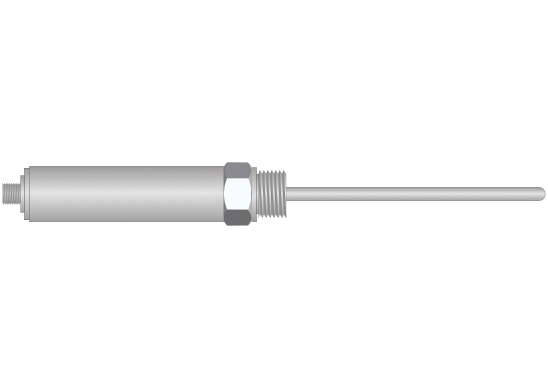

Sensor body dimensions:
- Cylinder diameter 23 mm in SS316, HEX24 upon thread
- Total body length comprehensive of circular M12 connector: 80 mm
- Total body length comprehensive of squared DIN EN 175 301-803-A connector: 120 mm
Built-in temperature transmitter with set ranges (custom ranges upon request)
Storage and operative temperature: -40 °C to +85 °C (0..90 %RH)
Supply voltage 10 to 32 VDC, protected against reverse polarity up to 60 VDC max
Accuracy ±0,1% f.s. or ±0,2 °C
Process connection by fix or sliding compression fittings
Aerothermic bores for ambiental survey
EU Declaration of Conformity
Compliant to electromagnetic compatibility according to regulation EMC 2014/30/EU
