Atex High Temperature Thermocouples

Atex High Temperature Thermocouples

Atex thermocouple for high temperature working cycles in industrial processes with explosion risks

ATEX thermocouples ASTC-G-Ex series allow the measurement of high temperatures up to 1800 °C in gas and powder in potentially explosive atmospheres, with basic Ex d protection and possibility of integrating intrinsic safety features, for the circuit part, through the use of an ATEX Ex ia transmitter

Unlike the ATEX thermocouples ASTC-H-EX series, they allow a higher temperature measurement thanks to the use of a ceramic sheath.


Contact us

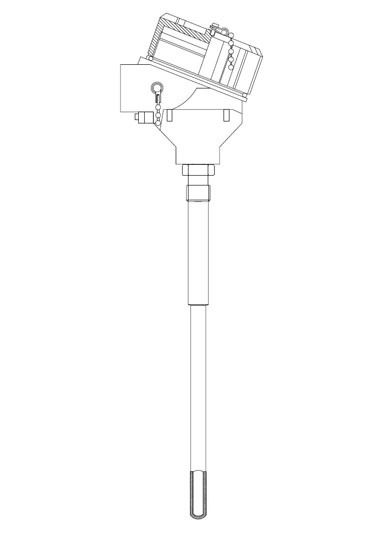

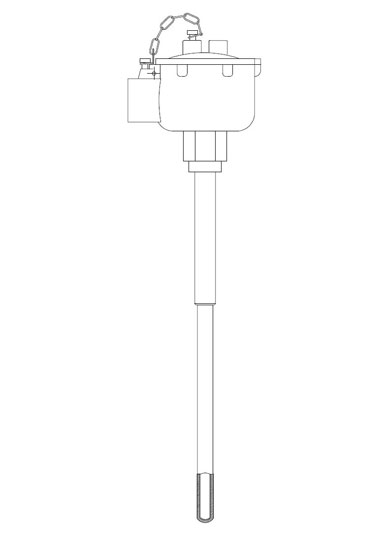

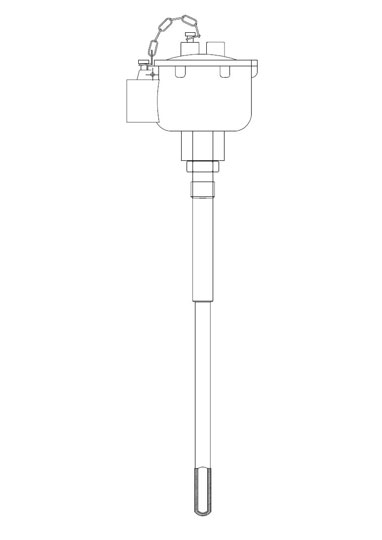

ASTC-G-Ex Model

Single or double thermocouple
Type K,J,T,N,E,B,R,S
Tolerance class 1 or 2 according to IEC584, ASTM E230 Standard or Special
Hot junction: isolated, grounded
Execution with MgO insert or with ceramic two-wire/four-wire insert
Ceramic sheath from diameters 6 mm to 15 mm (others available on request)
Ceramic sheath in C610 or C799 (according to the field of application)
Ceramic sheath length (Sg) on request
Support sleeve with a diameter ranging from 10 mm to 21.3 mm depending on the ceramic sheathing (others available on request)
Sleeve made of SS 304, 321, 316, 310, Inconel600, SS 446 (others available on request)
Sleeve length (Sc) on request
Aluminum connection head Ex d IP 65, Amb. Temp. [-55 °C to + 60 °C]
Electrical connection input: single output or double output
Connection to ceramic terminal block or temperature transmitter with output 4..20 mA

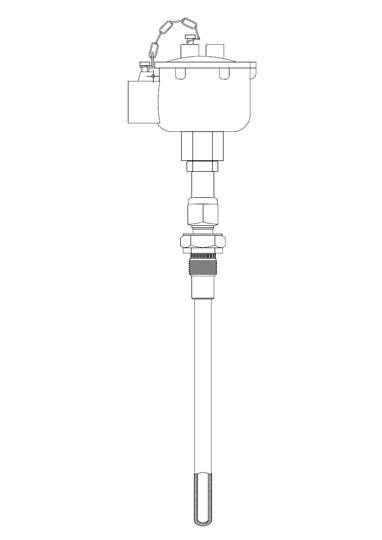

Stainless steel fittings of fixed type welded on the sheath or sliding type on the sheath (compression type) for process interface.

The ATEX Thermometer Assembly will comply with the essential health and safety requirements set out in Annex II of the 2014/34/EU (ATEX) Directive, which has been subject to a conformity assessment procedure through the EU Type Examination Certificate XEF 18 ATEX 0015 X, for categories 1/2GD and 2GD.
