Surface Measurements Thermocouple

Surface Measurements Thermocouple

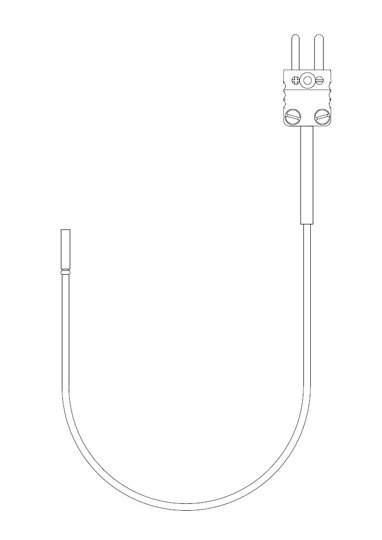

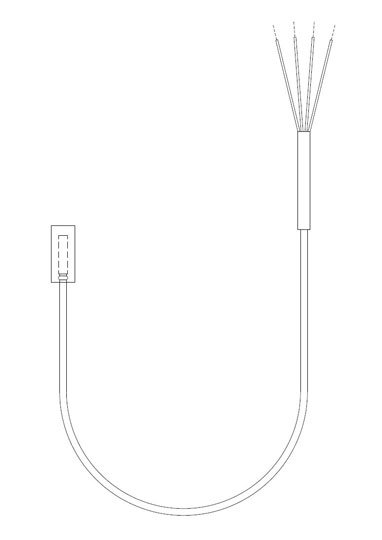

Stamp-type or block thermocouple for surface contact temperature measurements

Stamp-type or block thermocouples are used wherever there is a need for temperature measurement on surfaces, such as glass, fixtures, solar panels, plastic parts, automotive parts on cars or parts on electric and thermal motors and many other industrial applications.

The thermocouple with adhesive stamp plate allows temperature measurements up to 260 °C, with an adhesive tensile strength up to 20 kg.

The thermocouple with block or stainless-steel plate allows to acquire temperature measurements up to 1000 °C.

Contact us

ASTC-P model

Type K, J, T, N. Other types on request.
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according ASTM E230
Hot junction: isolated
Plate (adhesive stamp) made of Kapton or Fiberglass TTS
Aluminum or copper block (with possibility of adhesive or through-hole for fastening)
Thermocouple type cable in different sizes and insulations (PVC, Teflon, Silicone Rubber, Fiberglass TTS)
Polarized thermocouple connector directly fitted on cable
DIN bar temperature transmitter on request
Datasheet
