Atex Temperature Probes

Atex Temperature Probes

    ATEX temperature probes manufacturer for all those areas at risk of explosion where total safety is essential. Temperature range from -200 °C to +1800 °C

Through the EU Type Examination Certificate XEF 18 ATEX 0​015 X for ASPT-H / ASTC-H / ASTC-G Series temperature sensors (RTD and thermocouples) we can build Atex protection thermometer assemblies intended for use in potentially explosive atmospheres - Directive 2014/34/EU Annex III.

The main safety protection is the explosion-proof Ex d through the use of a special case with the possibility of adding the intrinsic Ex ia safety feature through Atex certified temperature transmitters.

Atex temperature probes can be used in different fields of application such as oil & gas, chemical, food storage, control of overheating gears and bearings etc. with a combination of protection type according to the Atex marking strings for both gas and powders.

Contact us

ATEX Marking strings

II 1G Ex d ia IIC TX Ga X
II 1/2D Ex ta/tb IIIC IP6X (XXX)°C Da/Db X
with Ex ia 4-20 mA transmitter
II 1/2G Ex d ia IIC TX Ga/Gb X
II 1/2D Ex ta/tb IIIC IP6X (XXX)°C Da/Db X
with Ex ia 4-20 mA transmitter
II 1/2G Ex d IIC TX Ga/Gb X
II 1/2D Ex ta/tb IIIC IP6X (XXX)°C Da/Db X
with separation element thickness i >3mm
II 2G Ex d ia IIC TX Gb X
II 2D Ex tb IIIC IP6X (XXX)°C Db X
with Ex ia 4-20 mA transmitter
II 2G Ex d IIC TX Gb X
II 2D Ex tb IIIC IP6X (XXX)°C Db X
with separation element 3mm > thickness i >= 1mm

With reference to the above mentioned marking strings our ATEX thermometric units can be installed in explosive atmospheres due to the presence of a mixture of flammable gases, vapors or mists in zone 0, 1 and 2 and in explosive atmospheres due to the presence of combustible powders in zone 20/21, 21 e 22

The ATEX thermometer units of ASPT-H / ASTC-H / ASTC-G series are always accompanied by the EU declaration of conformity, the conditions for safe use and the necessary manuals.

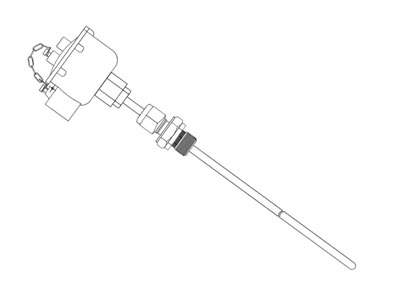

Pt100 Atex

Atex resistance thermometers for applications in the petrochemical, oil & gas, chemical and food storage sectors.

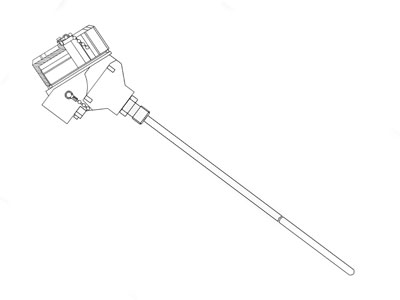

Atex Thermocouple

Atex thermocouple for petrochemical, oil & gas, chemical, gas furnace and food storage applications.

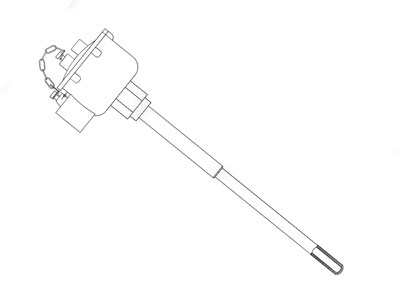

Atex Probes for High Temperatures

Atex thermocouple for high temperature working cycles in hazardous industrial sectors.

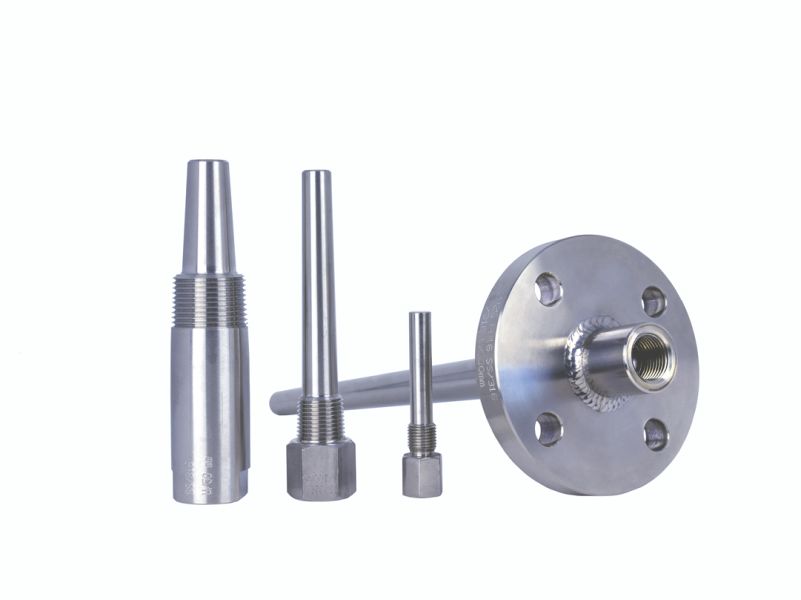

Atex Thermowells

Thermowells for Atex zones in bar or pipe execution in SS 304, 310, 316, 446, Inconell600 for the protection of thermo elements from severe process conditions.

Atex Transmitters

Atex Ex ia and standard temperature transmitter for the installation in sensor case with output ranging from 4 to 20 mA, HART®, PROFIBUS PA®, FOUNDATION Fieldbus®
