Thermocouple with Connection Head

Thermocouple with Connection Head

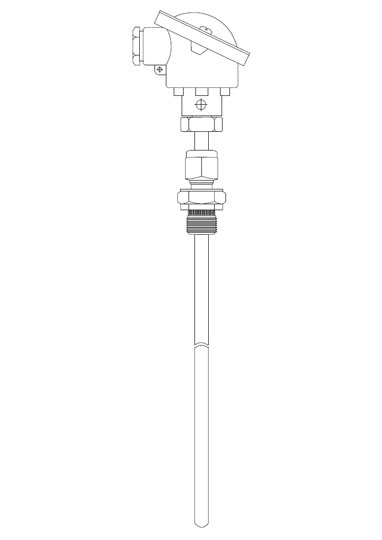

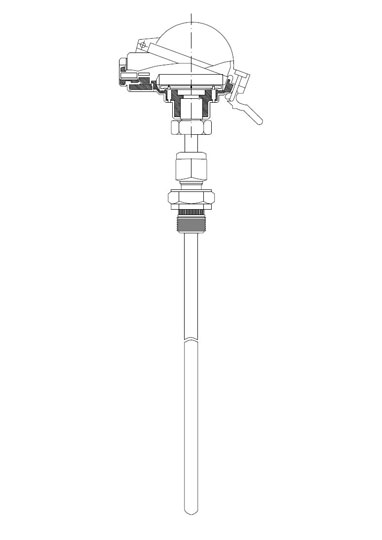

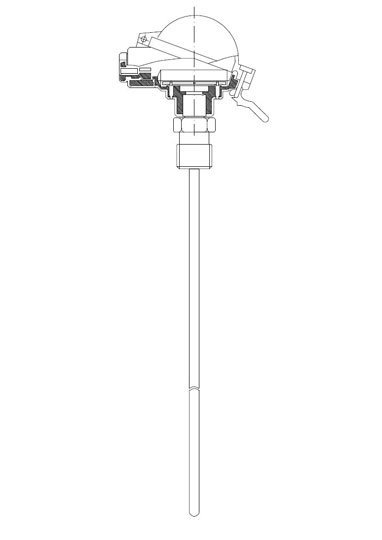

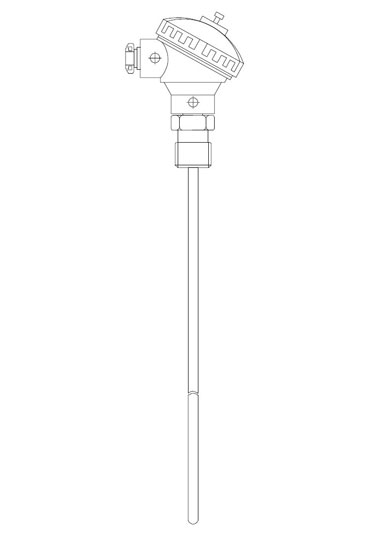

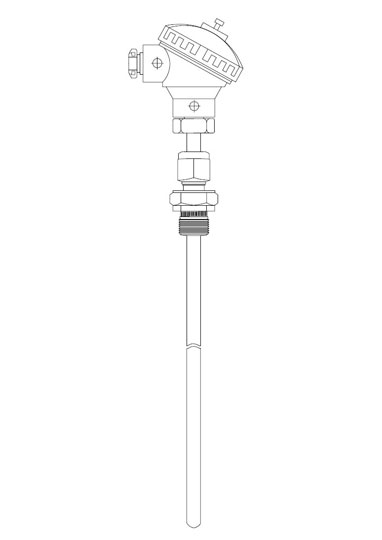

Thermocouple temperature probe with aluminum connection head

The connection head allows to insulate and protect internal electrical connections (terminal block or temperature transmitters) from process conditions (water, chemicals, weather, steam, etc.).

The wide choice of materials and the different diameters of the external sheath make the thermocouple with case suitable for different uses in general and industrial applications, easily interfaced with your process by means of pipe fittings (see accessories for temperature probes).

Contact us

ASTC-H model

Type K, J, T, N. Other types available on request
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according to ASTM E230
Hot junction: isolated or grounded
Simple or mineral oxide isolated execution (MgO)
Sheath in SS 304, 310, 316, 321, Inconel600, Nicrobell C
Diameters of sheath ranging from 0.5 to 21 mm
Aluminum connection head DIN B, A, Miniature with protection from IP65 to IP68
Ceramic terminal block or temperature transmitter with 4..20 mA output (HART protocol on request)
Fixed or sliding fittings in stainless steel and brass
Possibility of using a plate for contact measurement or flange (for sheath diameter 6 mm)
Support for aero-thermal measurements
Datasheet
