Mineral Oxide Insulated (MgO) thermocouple suitable for applications in processes with strong vibrations

Magnesium Mineral Oxide insulated Thermocouples, commonly referred to as MgO thermocouples, meet complex requirements in industrial sectors.

The structure and the type of construction make them indestructible, adapting to heavier industrial processes, heavy and subject to strong vibrations.

The Mineral Insulated Thermocouples, through the correct combination of materials for the construction, are used almost everywhere, such as in heat treatment furnaces, boilers, test benches, test rooms, tuning, electric or thermal engine board, industrial research, etc.

Contact us

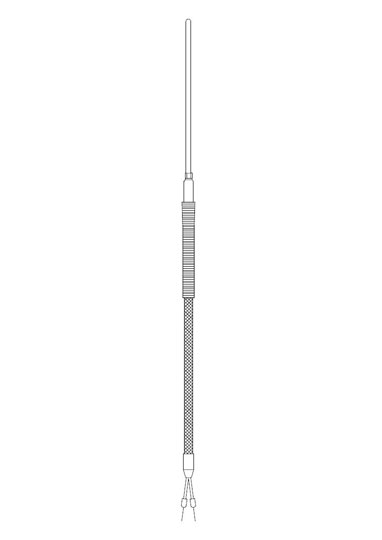

ASTC-W model

Type K, J, T, N. Other types are available on request
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according to ASTM E230
Hot junction: isolated or grounded
Mineral oxide insulated execution (MgO)
Sheath in SS 304, 310, 316, 321, Inconel600, Nicrobell C
Diameters ranging from 0.5 to 8 mm (diameters 0.25 mm and 10 mm on request)
Pot Seal in SS with anti-kink spring
Extension or compensating cable in different sizes and insulations (PVC, Teflon, Silicone Rubber, Fiberglass TTS)
Polarized thermocouple connector directly fitted on the cable

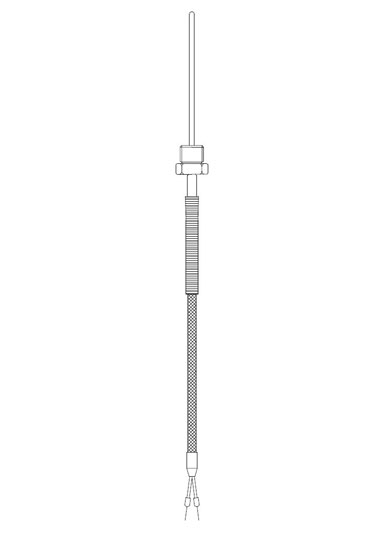

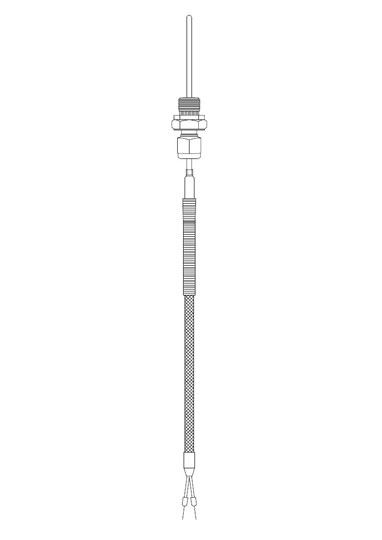

Fixed and sliding fittings
Possibility of using a plate for contact measurement or flange (for sheath diameter 6 mm)
DIN bar temperature transmitter on request
Datasheet
