Resistance Thermometer also called Resistance
Temperature Detector (RTD) is a temperature sensor that determines
the temperature to which it is subjected using the principle that the
resistance of a particular metal varies with changes in temperature.
Resistance thermometers types are classified with the abbreviation of the
material used for their construction followed by the nominal resistance value,
expressed in Ohm.
Normally resistance thermometers are identified with the initials of the
material used for their construction (Platinum = Pt, Nickel = Ni) followed by
their nominal resistance at a temperature of 0 ° C as Pt100, Pt500, Pt1000.
The construction of the sensing element or resistor can be wire wound,
spiral wound, or film wound. The configuration of a resistance thermometer can
be with 2, 3 or 4 connection wires depending on the temperature measurement

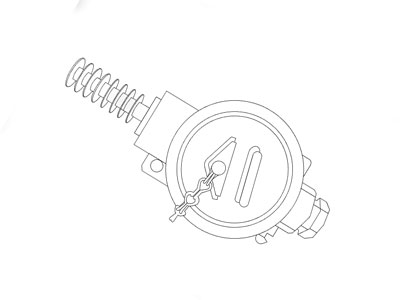

Wall-mounted RTD for aero-thermal measurements in rooms, air conditioning
and climatic test chambers.

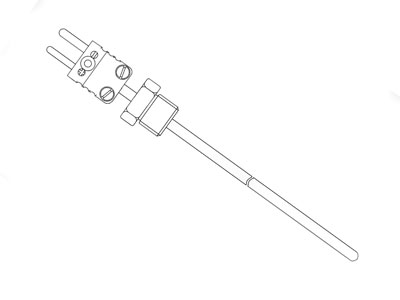

RTD with connector fitted for general applications, laboratories,
plastic/packaging sector, climatic test chambers.

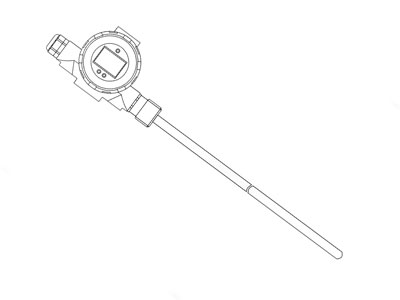

RTD with display for industrial sectors on medium and large installations
for instantaneous reading visualization.

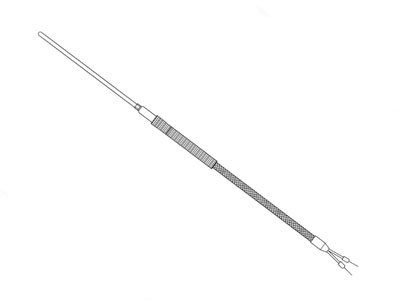

Simple execution resistance thermometer with connection cable for general
applications and excellent price ratio.

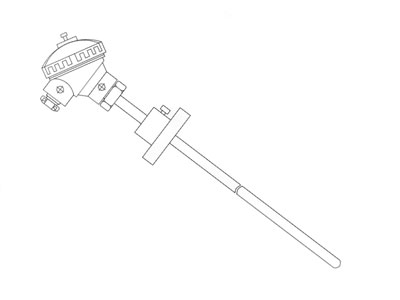

RTD for aero-thermal measurements with fixing flange for air conditioning
and air treatment plants.

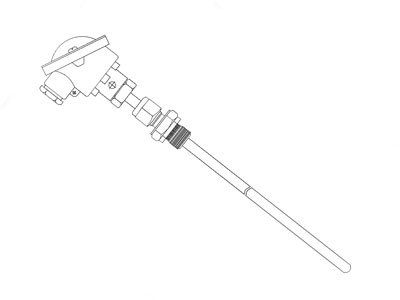

Resistance thermometer with connection head for general applications in the
industrial sector, food, chemical, food ovens.

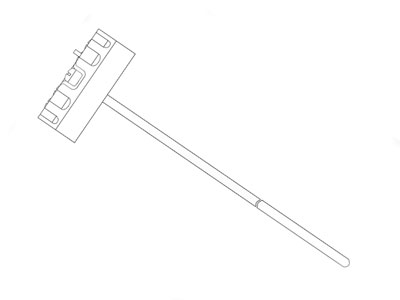

Measuring insert for RTD as spare part for replacing faulty inserts or in

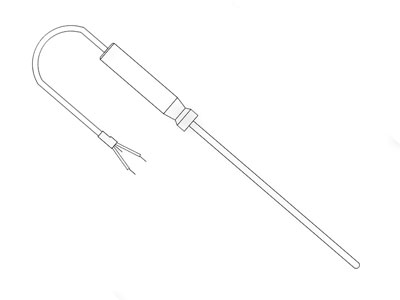

Hand-held RTDfor contact,
penetration and immersion temperature measurements in industrial, food or
Stamp-type or block resistance thermometer for surface temperature

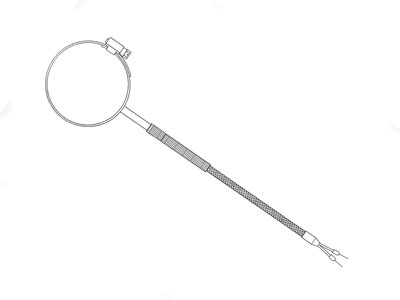

Clamp-type resistance thermometer for contact temperature detection on
pipes or cylindrical bodies.

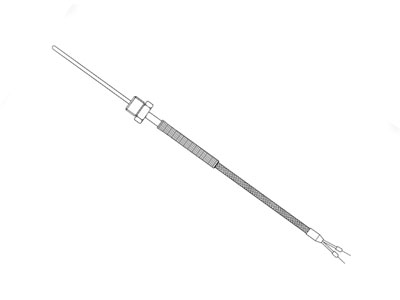

Mineral oxide RTD (MgO) for general applications, engine test rooms,
packaging, ovens and sectors where strong vibrations are present.
