RTD with Connector

RTD with Connector

RTD with connector fitted on the sheath

Resistance thermometers with connectors is particularly useful when a quick connection to the process is needed and/or in case extension cables are required.

The connector feature simplifies and speeds up the connection and/or disconnection of the temperature probe making it more functional in general applications, laboratories, plastics/packaging, climatic test chambers.

Mineral oxide (MgO) insulation provides greater protection against thermal shock and greater resistance to vibration.

Contact us

ASPT-C model

Nominal resistances: 100 Ohm @ 0 °C, 1000 Ohm @ 0 °C, (others available on request)
Tolerance class according to EN60751 or DIN
Measurements range from  –200 °C to + 600 °C
Number of wires per element: 2, 3 or 4
Mineral oxide insulation execution (MgO)
Sheath in SS 304 or 316 (others available on request)
Sheath diameters from 2 to 6 mm

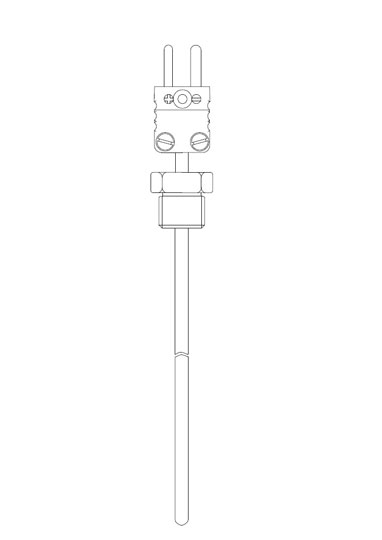

Connector fitted directly on the sheath

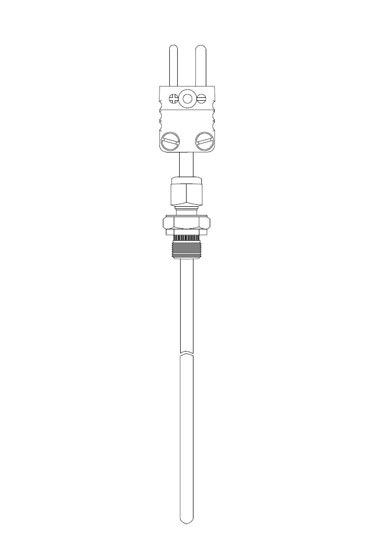

Fixed or sliding fittings

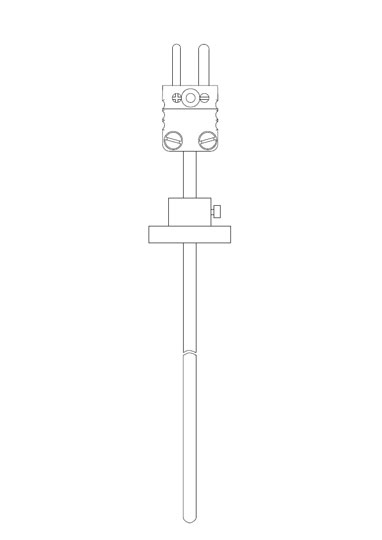

Possibility of using a plate for contact measurements or flange (for sheath diameter 6 mm)
Support for aero-thermal measurements
