Temperature Transmitter for Thermocouples and RTDs

Temperature transmitters convert the input signal from a sensor, such as a thermocouple or a RTD, into a stable, standardized output signal that can be read by other electronic devices.

Programmable transmitters via PC or HART, PROFIBUS PA or FOUNDATION Fieldbus protocol. Available in versions for sensor housing or DIN bar mounting.

Contact us

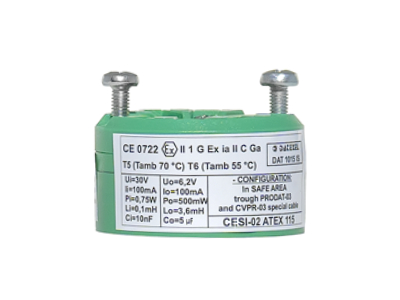

PC programmable temperature transmitter

Head/case transmitter for TC, Pt100, Pt1000 with 4-20mA looped output signal (2 wires). Available in non-isolated version and in galvanically isolated 1.5 kVAC version. Configurable via software with dedicated micro-usb interface.

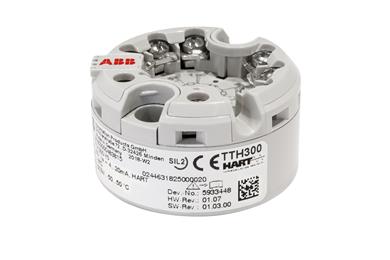

Temperature transmitter with HART® protocol

Programmable transmitter with HART® protocol in HART 5 or HART 7 version, with 4-20mA looped output signal (2 wires). Functional safety SIL 2 / SIL 3 according to IEC 61508

FOUNDATION Fieldbus® Temperature Transmitter

Programmable transmitter FOUNDATION Fieldbus® H1 (IEC 611582-2), Baud rate 31.25 Kbit/s, ITK 5.x, FISCO-compliant (IEC 60079-27), Fault current signal FDE (Fault Disconnection Electronic). Functional Safety SIL 2 / SIL 3 according to IEC 61508

PROFIBUS PA® Temperature transmitter

Programmable transmitter PROFIBUS PA® - MBP (IEC 61158-2), Baud rate 31.25 kBit/s, PA Profile 3.01, FISCO-compliant (IEC 60079-27), Fault current signal FDE (Fault Disconnection Electronic), PA bus address 0 to 125 or PA standard 126. Functional Safety SIL 2 / SIL 3

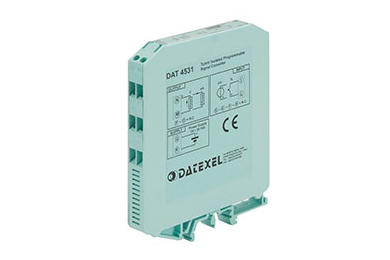

DIN bar temperature transmitter programmable via PC or DIP Switch

DIN bar transmitter for TC, Pt100, Pt1000 with 4-20mA output signal in loop (2 wires). Version with galvanic isolation. Configurable via software or via DIP Switch on the transmitter.

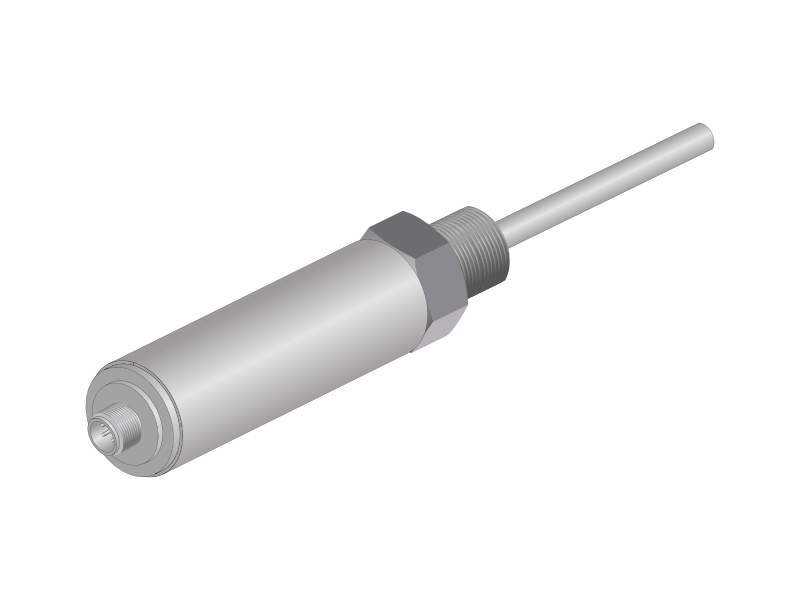

RTD Temperature Transmitter with analogue output

Temperature transmitter with square DIN connector (IP65) with angular output or with circular M12 connector.
