Connectors for Temperature Probes

Connectors for Temperature Probes

Polarized Connectors for Thermocouples and RTDs

For ease of connection with cable extensions or temperature indicators, we offer a wide range of connectors for temporary cable installations or for acquisition panels.

All thermocouple connectors have polarized contacts for the type, while connectors for RTDs are with copper contacts.  Available in single or double circuit version.

Contact us

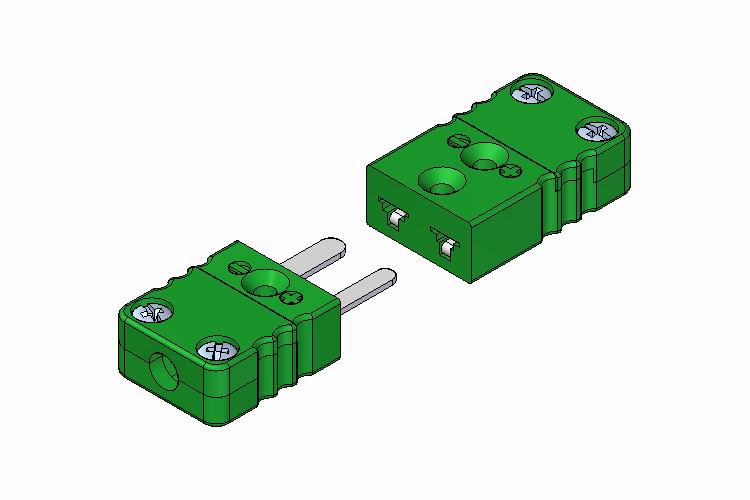

Flat plug Miniature Connectors
AS-Cm Series

Thermocouple and RTD connectors.
Suitable for use with thin or mineral oxide isolated cables.
Thermocouple polarized contacts to ensure proper connection.
Easy connection of conductors by means of sandwich construction.
Printed dividers to prevent short circuits.
Robust one-piece body.
Screws with combined head (slotted and cross slot tip).
Possibility of self-locking version between plug and socket connector

Construction material:
 - Plastic (Max working temperature 200 °C)
 - Thermosetting resin with Fiberglass addition (Max working temperature 350 °C)
 - Ceramic (Max working temperature 650 °C)

Number of contacts:
 - 2 or 3 in the flat version (in thermocouples the 3-contact version is ideal for connecting the shielding)
 - 4 contacts in the double version

Thermocouple color codes: ANSI, IEC, DIN.

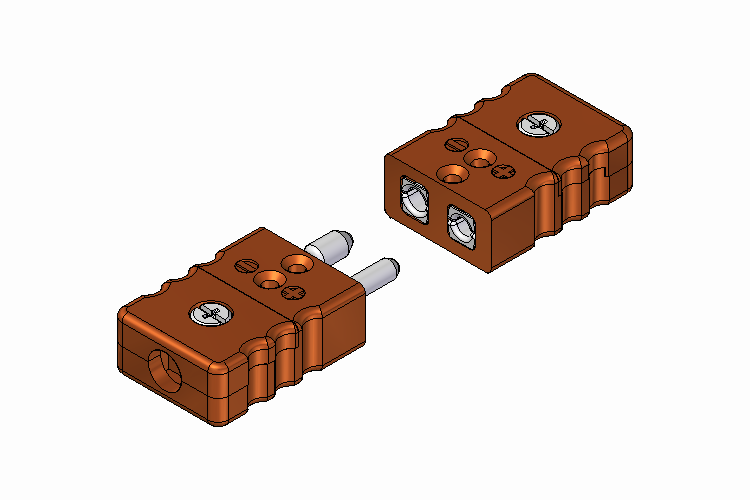

Round plug Standard Connectors
AS-Cs Series

Connectors for thermocouples and RTDs
Thermocouple polarized contacts to ensure proper connection.
Type of round contacts: hollow or solid.
Cover with central screw for quick wiring and assembly.
Printed dividers to prevent short circuits.
Robust one-piece body.
Screws with combined head (slotted and cross slot tip).

Construction material:
 - Plastic (Max working temperature 200 °C)
 - Thermosetting resin with Fiberglass addition (Max working temperature 350 °C)
 - Ceramic (Max working temperature 650 °C)

Number of contacts:
 - 2 or 3 (in thermocouples the 3-contact version is ideal for connecting the shielding)
 - 4 contacts in the double version

Thermocouple color codes: ANSI, IEC, DIN.

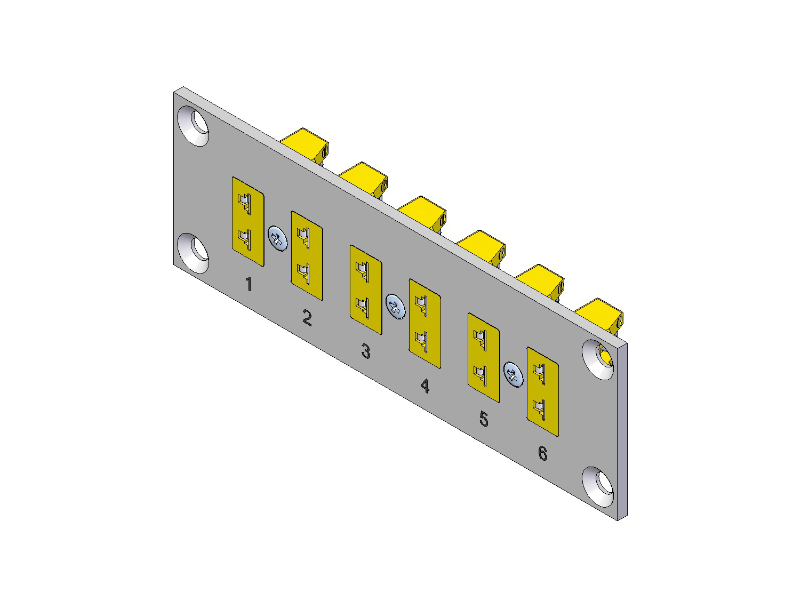

Panel Connectors

Panel inserts in Miniature/Mignon and Standard versions for both thermocouples and RTDs.

2 or 3 pins female contacts.

Mounting by means of steel brackets, fixing by means of two screws or clips.

Pre-assembled aluminum panels for thermocouples and resistance thermometers, for installation in control rooms, test benches, laboratory applications, pilot plants, etc.
