Thermocouple with Display

Thermocouple with Display

Thermocouple with digital display for instant temperature reading

The thermocouple with integrated digital display is particularly useful when it is necessary to have an instantaneous display of the temperature on site and the retransmission of the analog signal to the process control room for a real time data reading.

IP6x case can be installed in harsh environments and outdoors to withstand the elements.

Contact us

ASTC-Dy model

Type K, J, T, N, E, B, R, S. Other types available on request
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according to ASTM E230
Hot junction: isolated, grounded
Simple or mineral oxide isolated execution (MgO)
Sheath in SS  304, 310, 316, 321, 446, Inconel600, Nicrobell C
Diameters of the sheath ranging from 0.5 to 21 mm
Aluminum head with integrated display (analog output 4..20 mA, protocol HART)
DC voltage supply in the range from 10 to 42 Vdc
Local Head Layout (Radial / Rear)

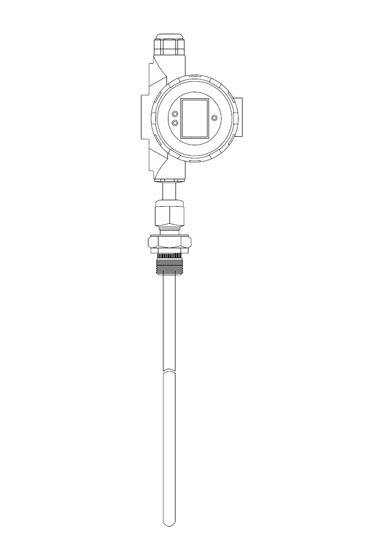

Fixed or sliding fittings

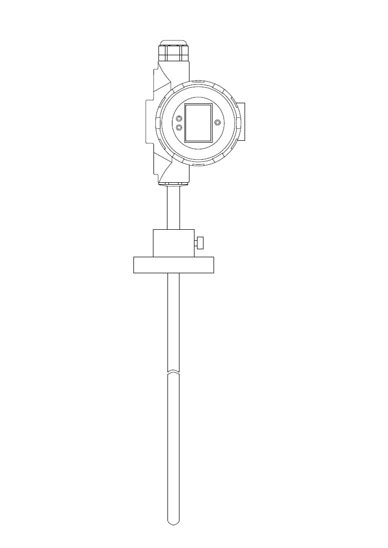

Possibility to use a plate for contact measurements or sliding flange (for sheath diameter 6 mm)
Aero-thermal hole for environmental measurements
