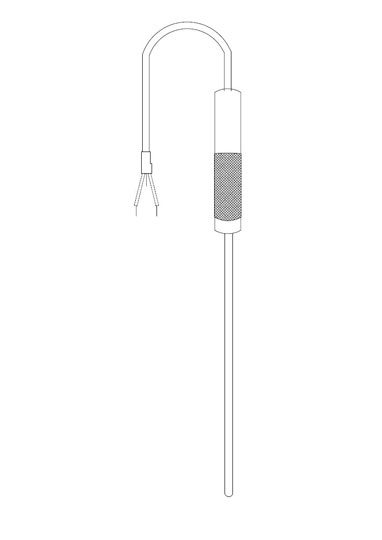

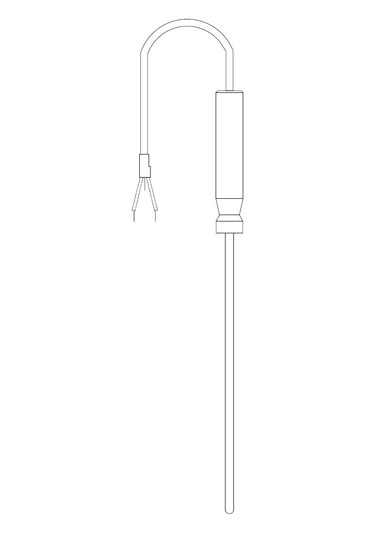

Hand-held Thermocouple

Hand-held Thermocouple

Contact, immersion and penetration thermocouple ideal for general applications, food, chemistry, wood treatments, laboratories.

Thanks to the ergonomic handle, this type of thermocouple can be used in a wide range of applications such as immersion in liquids, penetration into materials or foodstuffs, measurements in chemical environments with fast response times or in laboratories with combined portable thermometers.

With the right combination of materials for the measuring sheath, handle and connecting cable, the hand-held thermocouple probe is ideal for a variety of uses in industrial processes.

Contact us

ASTC-Im model

Type K, J, T, N. Other types on request
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according to ASTM E230
Hot junction: isolated or grounded
Simple execution or with mineral oxide insulation (MgO)
Sheath in SS 304, 310, 316, 321, 446, Inconel600, Nicrobell C
Diameters ranging from 0.5 to 6 mm
Possibility of sheath with round or needle-shaped tip
Ergonomic handle in plastic or aluminum
Extension or compensation cable in different sizes and insulations (PVC, Teflon, Silicone Rubber also for food applications, fiberglass TTS)
Polarized thermocouple connector directly fitted on the cable
Possibility to use plates for contact measurements
Datasheet
