RTD sensor with connection Head

RTD sensor with Connection Head

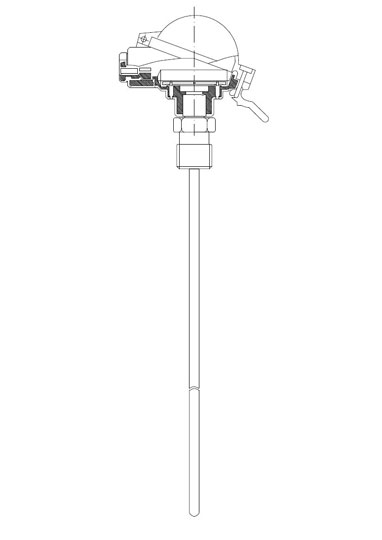

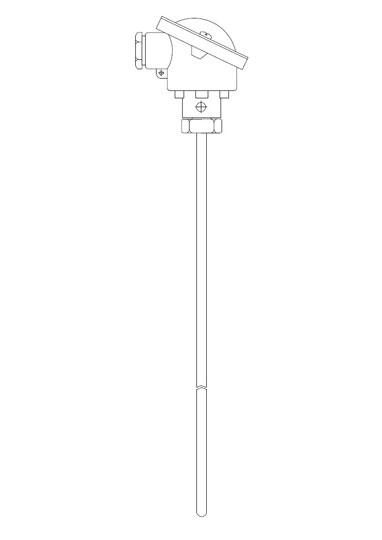

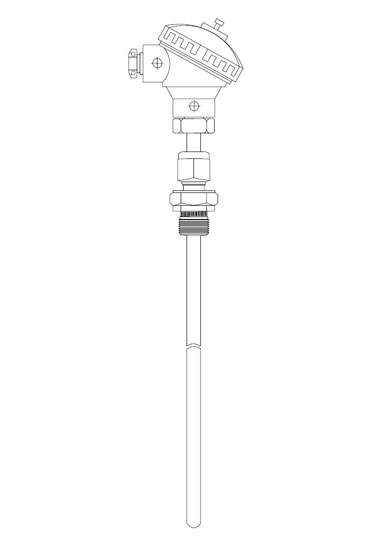

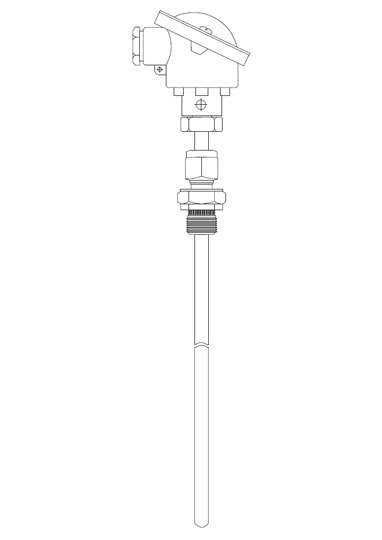

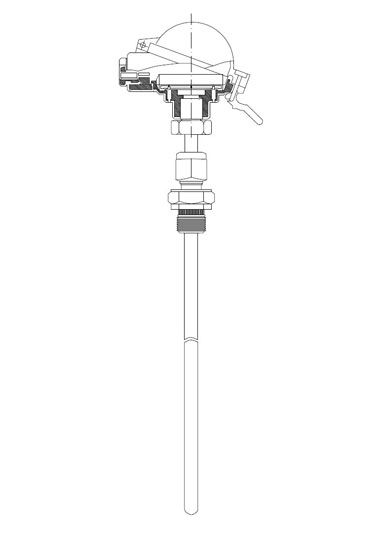

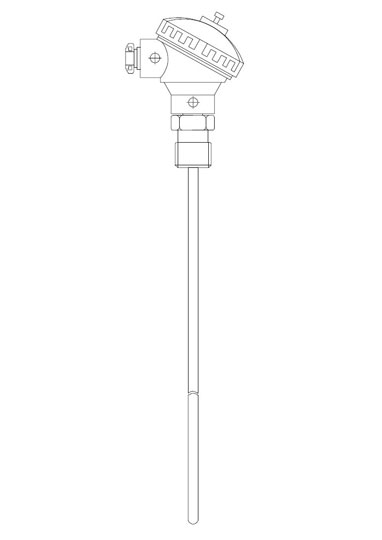

Resistance Thermometer with aluminum connection head

The IP67 aluminum connection head has the function of isolating and protecting the internal electrical connections (ceramic terminals block or temperature transmitters) from process conditions (water, chemical agents, atmospheric agents, steam, etc.) allowing, through the dedicated inlet equipped with cable gland, to wire the connection cable.

The broad choice of materials and the different diameters of the outer sheath make the resistance thermometer with case suitable for various uses in general and industrial applications easily interfaced with the working process through fittings (see Accessories for temperature probes)

Contattaci

ASPT-H model

Resistance thermometer with aluminum case
Nominal resistance: 100 Ohm @ 0 °C, 1000 Ohm @ 0 °C, (others available on request)
Tolerance class according to EN60751 or DIN
Measurement range from –200 °C to + 600 °C
Number of wires 2, 3 or 4
Simple insulation or mineral oxide execution (MgO)
Sheath in SS 304 or 316 (others available on request)
Diameter of the sheath of 6 or 8 mm (others available on request)
Aluminum IP67 connection head
Ceramic terminal block or temperature transmitter with 4..20 mA analog output (HART protocol on request)
Fixed or sliding fittings
Possibility of plate for contact measurements or flange (for sheath diameter 6 mm)
Aero-thermal hole for environmental measurements
Datasheet
