Ambient Temperature RTD

Ambient Temperature RTD

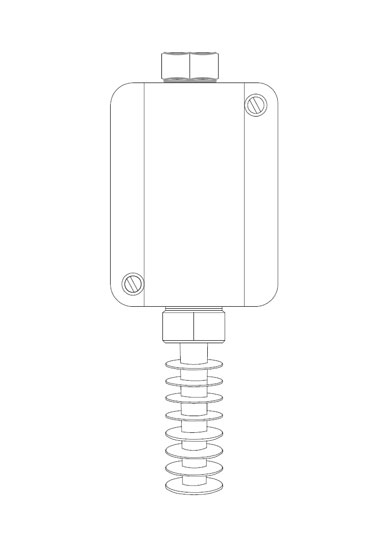

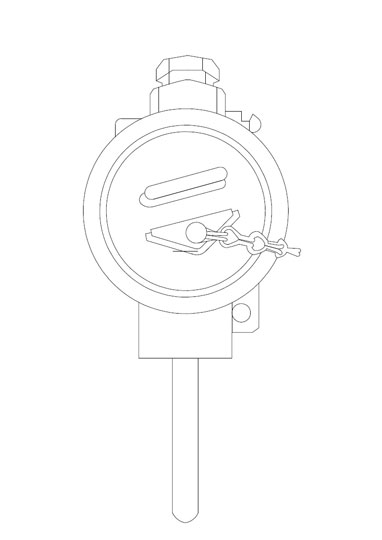

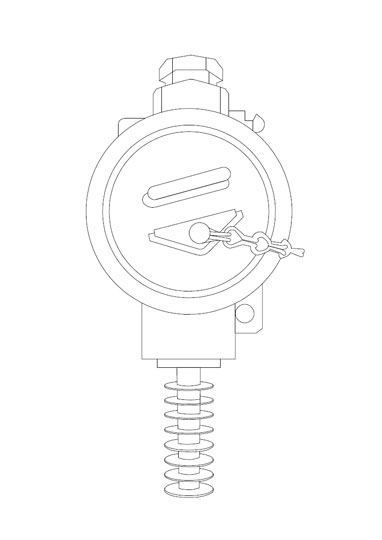

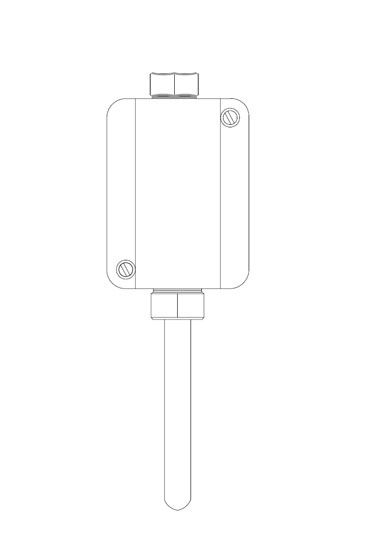

Wall-mounted RTD for aero-thermal environmental measurements

Specific RTD for ambient temperature detection.

Different accuracies allow the ambient temperature probe to measure reliably and repetitively over time.

Wall-mounted cases are available in plastic, aluminum or stainless steel for temperature measurements in a variety of environments, from museum halls to industrial testing rooms and food storage facilities.

Contact us

ASPT-100Amb model

Nominal resistances: 100 Ohm @ 0 °C, 1000 Ohm @ 0 °C, (others available on request)
Tolerance class according to EN60751 or DIN
Measuring range from  –200 °C to + 250 °C
Number of wires per element: 2, 3 or 4
Single or double element
Sheath in SS 316 o in aluminum, finned or smooth tube execution
Standard sheath length 50 mm (others on request)
IP65 thermosetting plastic or aluminum casing IP67
Internal connection via ceramic terminal block or temperature transmitter (analog output 4..20 mA)
