Hot Runner Thermocouple

Hot Runner Thermocouple

Excellent corrosion resistance in industrial processes where aggressive agents are used

The Hot Runner Thermocouple, due to its MgO construction and high temperature thermoplastic pot seal, is ideal for use in the plastics and rubber industries, hot runner injectors, industrial injection molding machines and many other industrial applications in the plastics industry.

Contact us

ASTC-HR model

Single thermocouple
Type K,J,T,N, (other types on request)
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according to ASTM E230
Hot junction: isolated or grounded
Mineral oxide execution (MgO)
Diameters ranging from 0.5 mm to 3 mm (other diameters available on request)
Sheath in Stainless Steel 316, Inconel600 (other types available on request)
Pot Seal:

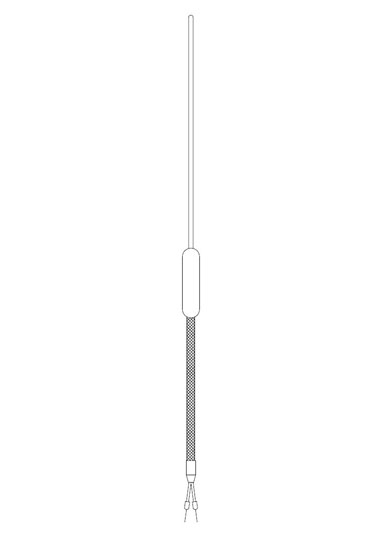

- Co-molded thermoplastic material diameter 5×20 mm with max temperature of 530 °C
-  Stainless Steeldiameters 4 or 6 mm
Extension cable in different sizes and insulation (PVC, Teflon, Kapton, Fiberglass, Silicone Rubber)

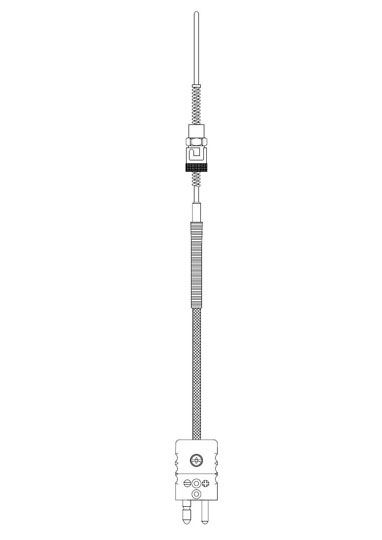

Mignon or Standard connectors directly fitted on cable
Transmitter from DIN BAR

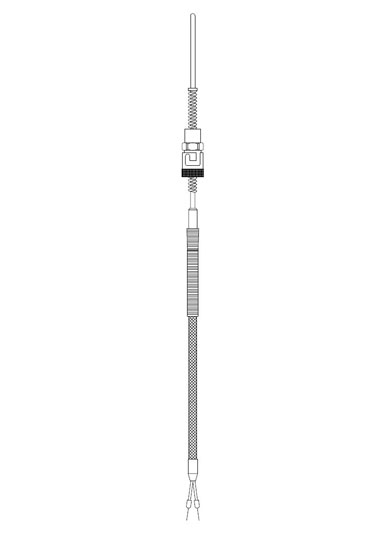

Fixed or sliding fittings or bayonet with spring
Plate for contact measurements on request
