Surface Contact RTD

Surface Contact RTD

Temperature probe RTD for surface contact temperature measurement

The contact resistance thermometer for surface allows an accurate and repetitive measurement over time for surface temperature measurements on materials such as glass, fixtures, solar panels, plastic parts, automotive parts on cars or parts on electric and thermal motors and other industrial applications.

The construction of this sensor can be made with adhesive stamp-like plate or with aluminum, copper or stainless steel blocks to meet the different needs and temperatures to be measured.

Contact us

ASPT-P model

Stamp-like or block resistance thermometer for surface temperature detection
Nominal resistances: 100 Ohm @ 0 °C, 1000 Ohm @ 0 °C, (others available on request)
Tolerance class according to EN60751 or DIN
Measurement range from –100 °C to + 600 °C, depending on the construction
Number of wires per element 2, 3 or 4

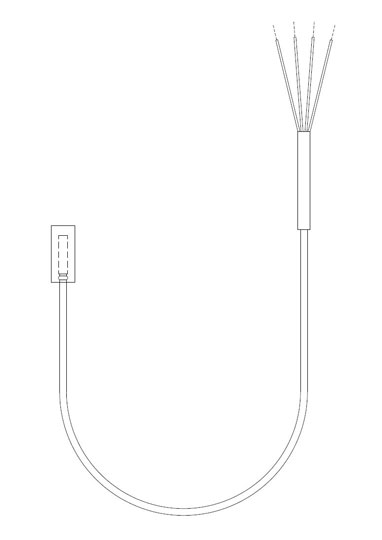

Plate (adhesive stamp-like) in Kapton or Fiberglass TTS
Aluminum or copper block (with possibility of adhesive or through-hole fixation)
Extension cable in different sizes and insulations (Pvc, Teflon, Silicone Rubber, Fiberglass TTS)

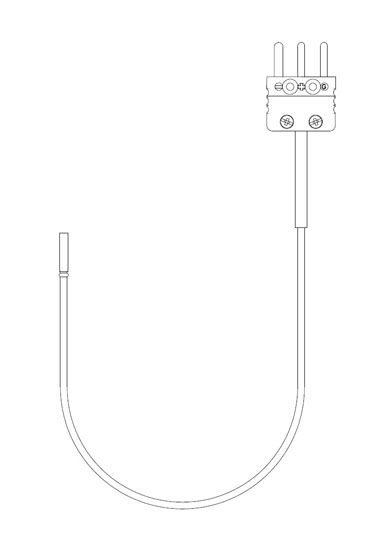

Connector directly fitted on the cable
DIN bar temperature transmitter available on request
