Insert for RTD sensors

Insert for RTD sensors

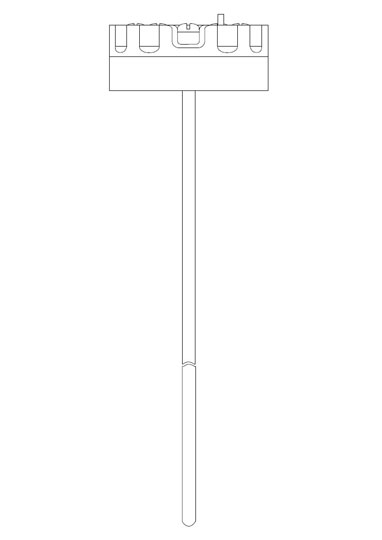

Interchangeable measuring insert as spare part for resistance thermometers

The interchangeable insert for RTD sensors is used when the temperature probe no longer has the initial performance for reasons related to the work process. In this case it is sufficient to replace the damaged insert with a new one without having to stop the plant.

It is made according to the needs and characteristics so that it can be installed and operated immediately in a simple way. Through the availability of different measuring sheath materials it meets all process temperatures in different applications.

Through the various connection solutions and temperature transmitters it can be immediately interfaced with your data acquisition system

Contact us

ASPT-I model

Nominal resistances: 100 Ohm @ 0 °C, 1000 Ohm @ 0 °C, (others available on request).
Tolerance class according to EN60751 or DIN
Measurement range from –200 °C to + 600 °C
Number of wires per element: 2, 3 or 4
Single or double element
Simple insulation or mineral oxide execution (MgO)
Sheath in SS 304 or 316 (others available on request)
Diameters from 3 to 8 mm (others available on request)

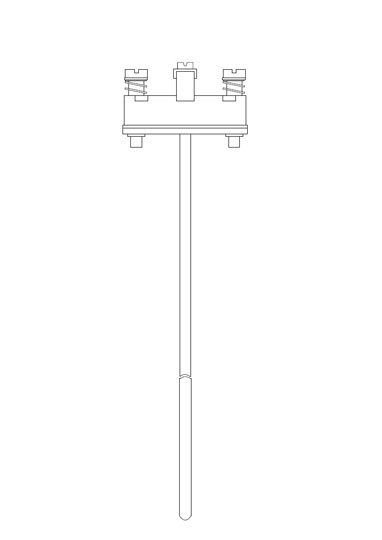

Ceramic terminal block or temperature transmitter (4..20 mA analog output) with sprung insert
Datasheet
