Atex Thermocouple

Atex certified thermocouple for temperature measurements in potentially explosive atmospheres due to the presence of gases, vapors, powders and liquids.

ATEX thermocouples of the ASTC-H-Ex series are the right solution for the measurement of high temperatures up to 1300 °C in gases and powders in potentially explosive atmospheres, with basic Ex d protection and possibility to integrate, for the circuit part, the intrinsic safety through the use of an ATEX Ex ia transmitter.

Unlike Pt100 Atex RTD, these transmitters are more resistant to vibrations, have faster response times to temperature variations and can measure temperatures above600 °C.

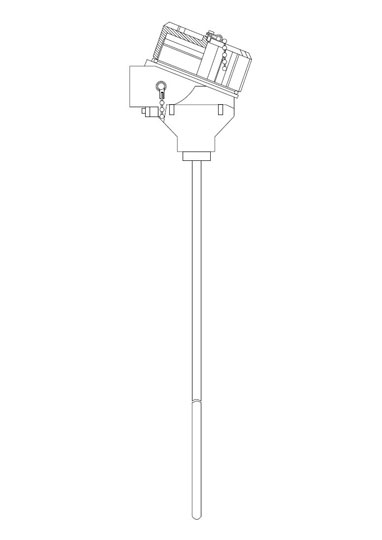

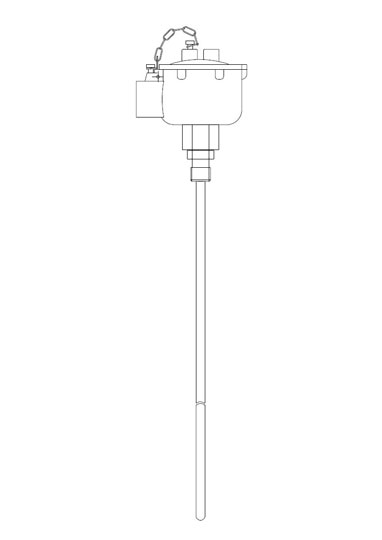

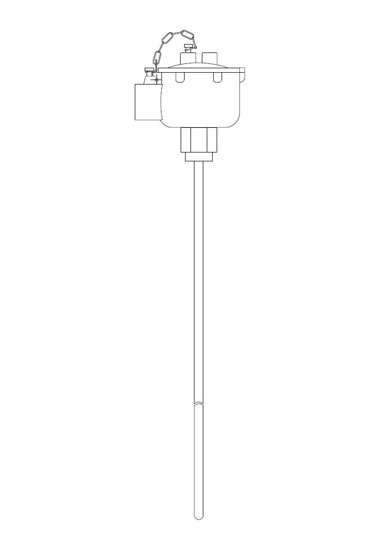

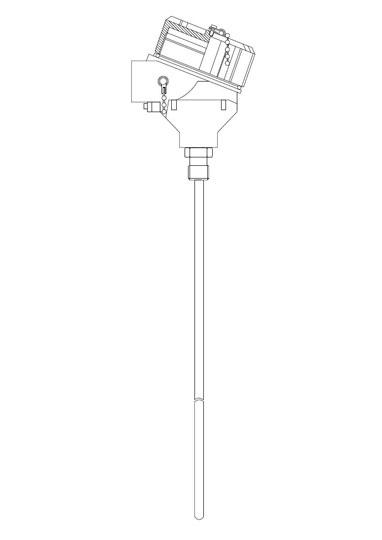

ASTC-H-Ex model

Single or double thermocouple

Type K,J,T,N,E,B,R,S

Tolerance class 1 or 2 according to IEC584, ASTM E230 Standard or Special

Hot junction: isolated, grounded

Compressed MgO execution (Simple execution with MgO insert from diameter 12 mm or larger)

Diameters from 1 mm to 21.3 mm (others available on request)

Sheath in SS 304, 321, 316, 310, Inconel600, Nicrobell C, SS 446 (others available on request)

Sheath length on request

Aluminum connection head Ex d IP 65, Amb. Temp. [-55 °C to + 60 °C]

Electrical connection input: single output or double output

Connection ceramic terminal block or temperature transmitter with output 4..20 mA

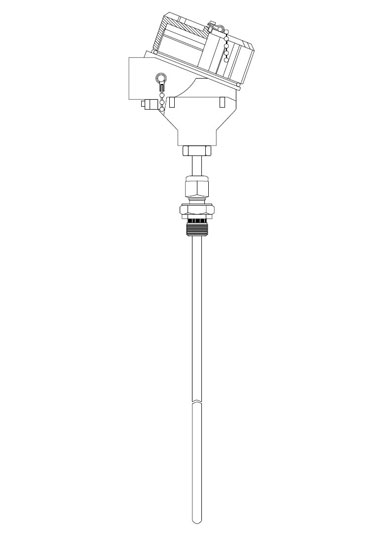

Stainless Steel fixed type fitting welded on sheath or sliding type on sheath (compression) for process interface.

The ATEX Thermometer Assembly will comply with essential health and safety requirements set out in Annex II of 2014/34/EU (ATEX) Directive, which has been subject to a conformity assessment procedure through the EU Type Examination Certificate XEF 18 ATEX 0015 X, for the categories 1/2GD e 2GD
