ASPT-Im model
| Nominal resistances: 100 Ohm @ 0 °C, 1000 Ohm @ 0 °C, (others available on request) |
| Tolerance class according to EN60751 or DIN |
| Measurement range from –200 °C to + 600 °C |
| Number of wires per element 2, 3 or 4 |
| Simple insulation or mineral oxide execution (MgO) |
| Sheath in SS 304 or 316 (others available on request) |
| Diameter ranging from 3 to 6 mm |
| Possibility of using a sheath with round or needle-shaped tip |
| Ergonomic handle in plastic or aluminum |
| Extension cable in different sizes and insulations (Pvc, Teflon, Silicone Rubber, Fiberglass TTS) |
| Connector fitted directly on the cable |
| Possibility of using plates for contact measurements |
| Possibility of using a cable fitted with interface connectors for the display device |

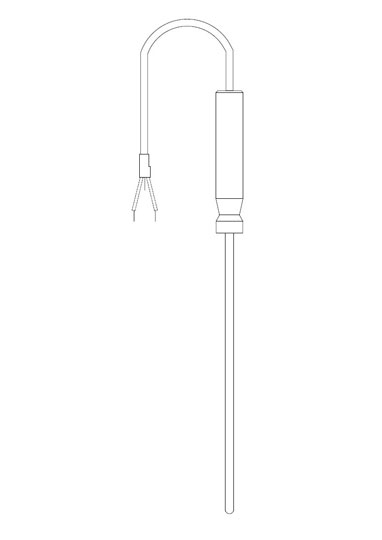

RTD with Handle
